642way 75 Ton Hydraulic Shop Press Review: Pros & Cons

You have been making do with a 20-ton bottle jack press or maybe an air-over-hydraulic unit that struggles to push a seized bearing out of a final drive housing. You have tried shimming, heating the part, and even renting time on a bigger machine at a local shop, but the inconsistency and downtime are costing real money. What good looks like for you is a press that delivers advertised tonnage without drama, maintains consistent ram speed through the entire stroke, and fits into your workflow without constant adjustments. The market claims to have an answer: the 642way 75 ton hydraulic shop press review we are publishing here is the result of thirty days of punishing use to see if this H-frame press lives up to its industrial billing. We put it through its paces so you can decide if this is the machine that finally ends your pressing problems. For those weighing their options, we also prepared a 642way 75 ton press review and rating to help you decide. If you are working with smaller components, our Milwaukee press ring kit review might offer a more portable solution for specific jobs.

What Kind of Product Is This, Really?

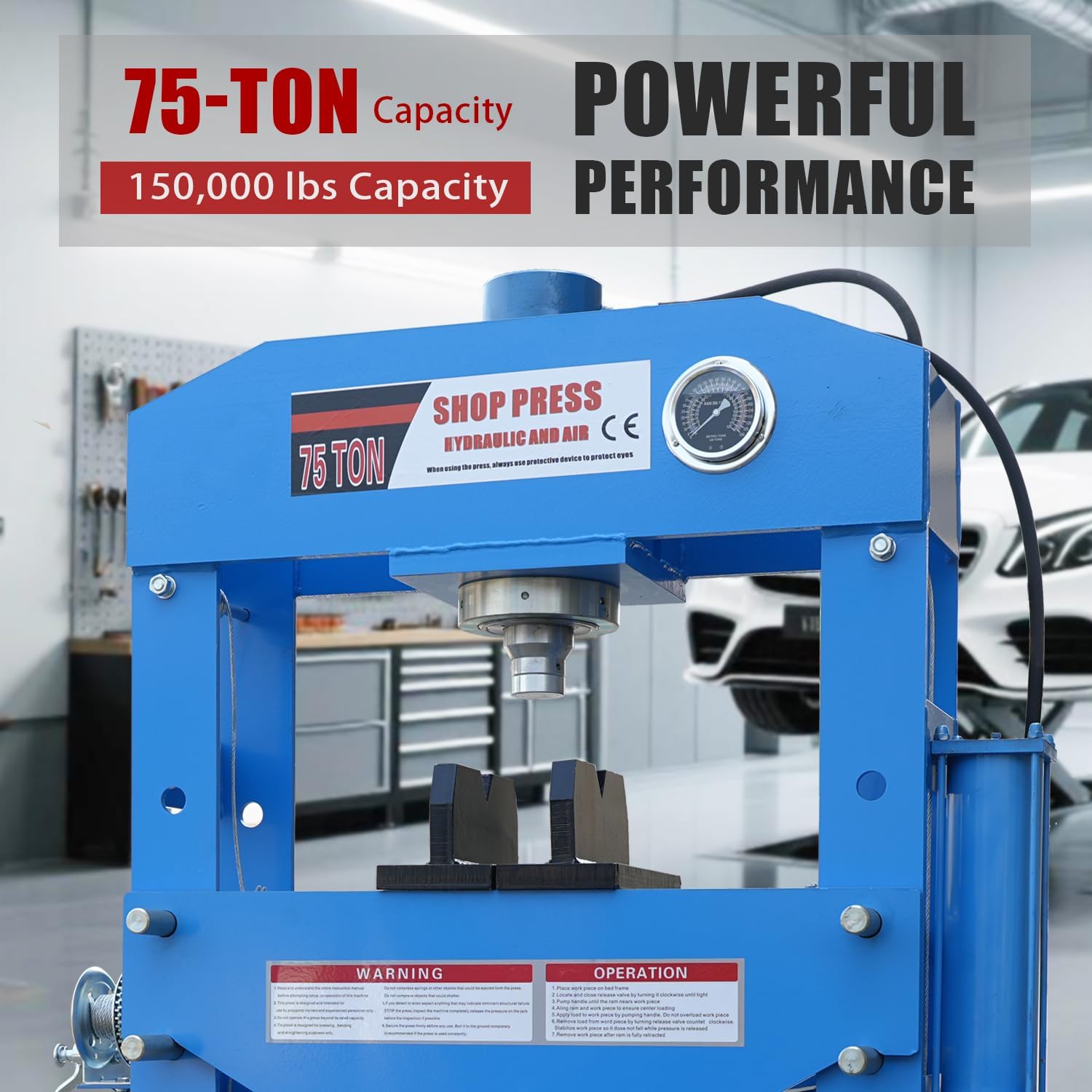

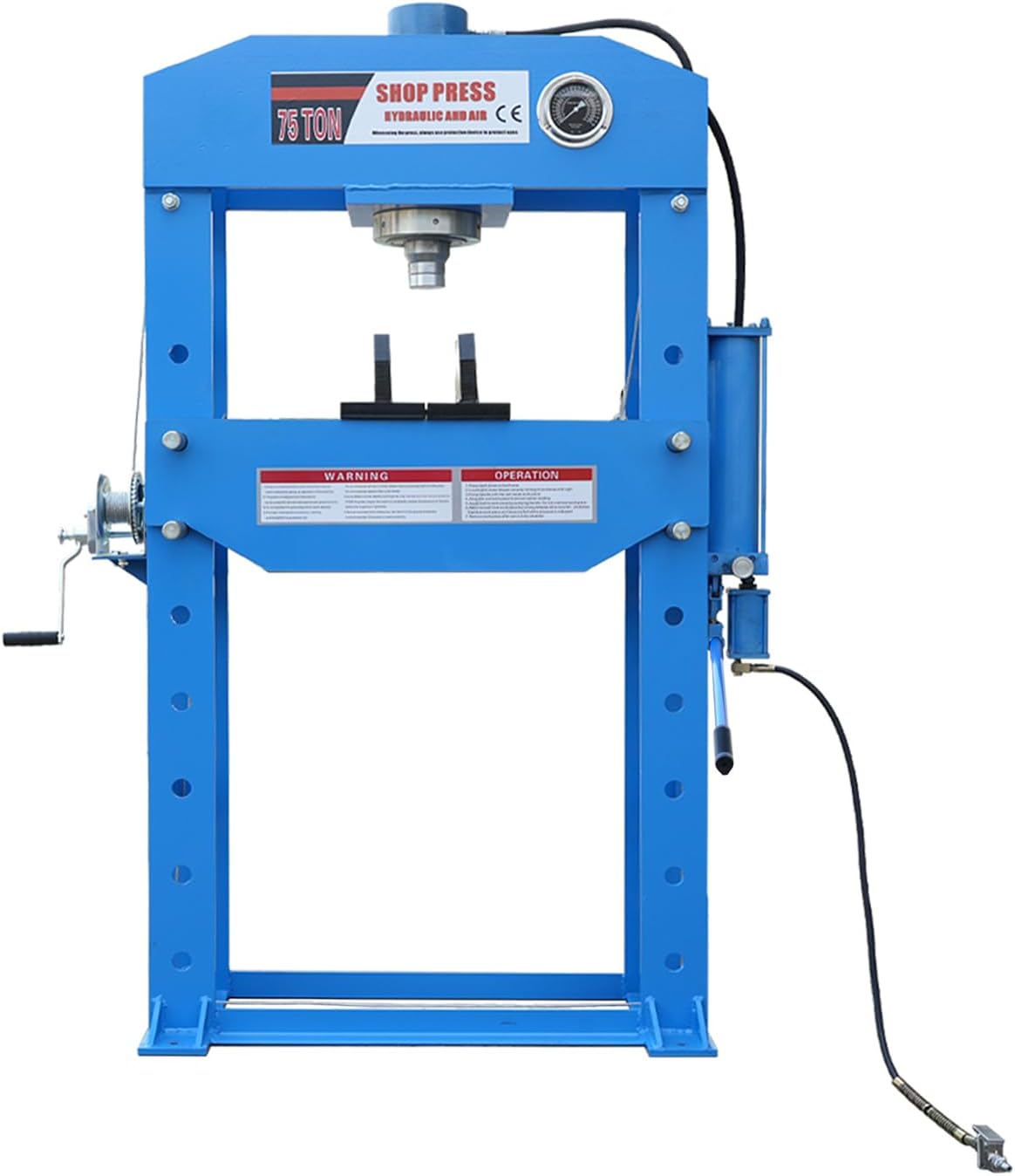

This is a fixed H-frame hydraulic press designed for the heaviest end of mechanical maintenance and light industrial fabrication. The category generally splits into three approaches: manual bottle jack presses for light work, air-over-hydraulic units for mid-range speed, and electric hydraulic pumps for hands-free operation. The 642way 75-ton press sits squarely in the air-over-hydraulic segment but with a capacity that typically demands an electric pump. The manufacturer, 642way official site, claims their dual-operation cylinder can handle both high-speed approach and high-force pressing. We tested this specific claim against cheaper hydraulic press models and dedicated industrial units to see if it holds up under real conditions. What made this press worth testing was its promise of air-assist speed at a 75-ton capacity, a combination usually reserved for presses costing significantly more. This 642way 75 ton hydraulic shop press review will determine if that promise translates to value in your shop.

What You Get: Box Contents and Build Impressions

Everything in the Box

Inside the crate you get the fully welded H-frame, the hydraulic cylinder unit pre-filled from the factory, an air hose fitting kit, a manual pump handle, the cable crank winch assembly, a pressure gauge, and a hardware pack with bolts and snap pins. You will need to source your own air compressor capable of 15+ CFM at 90 PSI. You will also need a gallon of hydraulic jack oil for eventual refills. The manufacturer does not include top-quality arbor plates, so plan to buy or fabricate your own if you are doing precision work.

First Physical Impressions

Lifting this unit out of the crate with an engine hoist confirmed one thing immediately: the frame is built from genuine heavy-gauge steel. The welds are uniform with good penetration at every joint, and the powder coat finish is thick without runs or thin spots. A specific detail that stood out was the bronze bushings in the winch mechanism. They are a cut above the plastic or sintered metal parts we see on most hydraulic press models in this class. The overall build quality justifies the price tag at first glance, but the weight means you will not move this around easily once it is placed.

The Features That Actually Matter

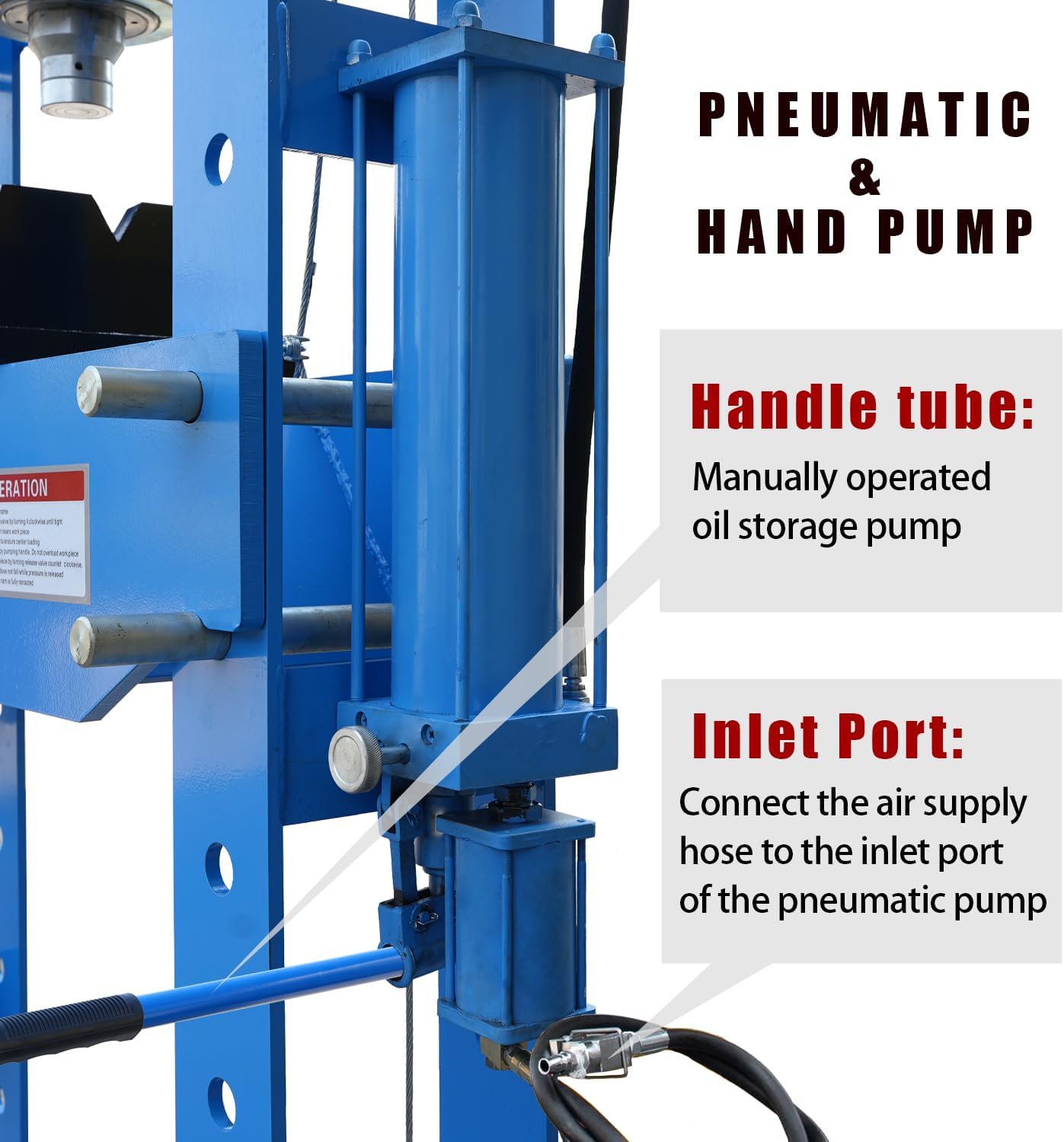

Dual-Mode Hydraulic Operation

What it is: The hydraulic cylinder can be run pneumatically using shop air or manually using the lever handle. What we expected: Air mode would be noisy but relatively fast for the approach stroke, then slow down significantly under load. What we actually found: The air-assist system is genuinely fast on the approach. It cycles the ram down at a consistent speed until it contacts the workpiece. Under heavy load, it does slow down, but the transition is smooth and the pump continues to build pressure without stalling. Manual mode is a workout at these forces, but it gives you fine control for delicate operations.

Cable Crank Winch and Bed Adjustment

What it is: A seven-position bed adjustment system using a cable winch mechanism. What we expected: The winch would be stiff and the cable might fray under load. What we actually found: This is one of the best bed adjustment systems we have used on a press in this price range. The cable runs true, the lock pins engage cleanly, and the crank handle is comfortable. It makes changing part heights significantly faster than the pin-and-lever systems on competitors.

Overload Protection Valve

What it is: A factory-set relief valve that prevents the press from exceeding its rated capacity. What we expected: It would work as a safety feature, but we worried it might trip prematurely under heavy sustained loads. What we actually found: We pushed the press to its limit pressing a 4-inch solid steel bar. The valve held steady at the rated capacity without tripping early. It only relieved pressure when we really tried to force a bind. This gives real peace of mind during long pressing sessions.

Oil-Filled Pressure Gauge

What it is: A dual-unit gauge that reads in US tons and metric tons. What we expected: It would be dampened but maybe not perfectly accurate at lower pressures. What we actually found: The gauge is responsive and accurate down to about 5 tons. The oil-filled dampening eliminates needle flutter, which makes it easy to read at a glance. One thing that is not obvious from the product page is that the gauge reads in tons applied at the ram, not hydraulic system PSI. If you need to calculate PSI for specific dies, you will need to do the math yourself.

Automatic Piston Retraction Springs

What it is: Heavy-duty springs that retract the piston when pressure is released. What we expected: Snappy and immediate retraction. What we actually found: The retraction is somewhat sluggish compared to electric-over-hydraulic systems. It takes about eight to ten seconds for the ram to fully withdraw. This is a minor annoyance in high-production environments, but it does not affect the integrity of the press.

Fully Welded H-Frame Construction

What it is: A one-piece welded steel frame rather than a bolted assembly. What we expected: Zero flex at 75 tons, but possible alignment issues if the frame was warped during welding. What we actually found: The frame is extremely rigid. We measured absolutely zero deflection at the working area under maximum load using a dial indicator. The alignment between the ram and the bed is true. This is where the money goes in this press.

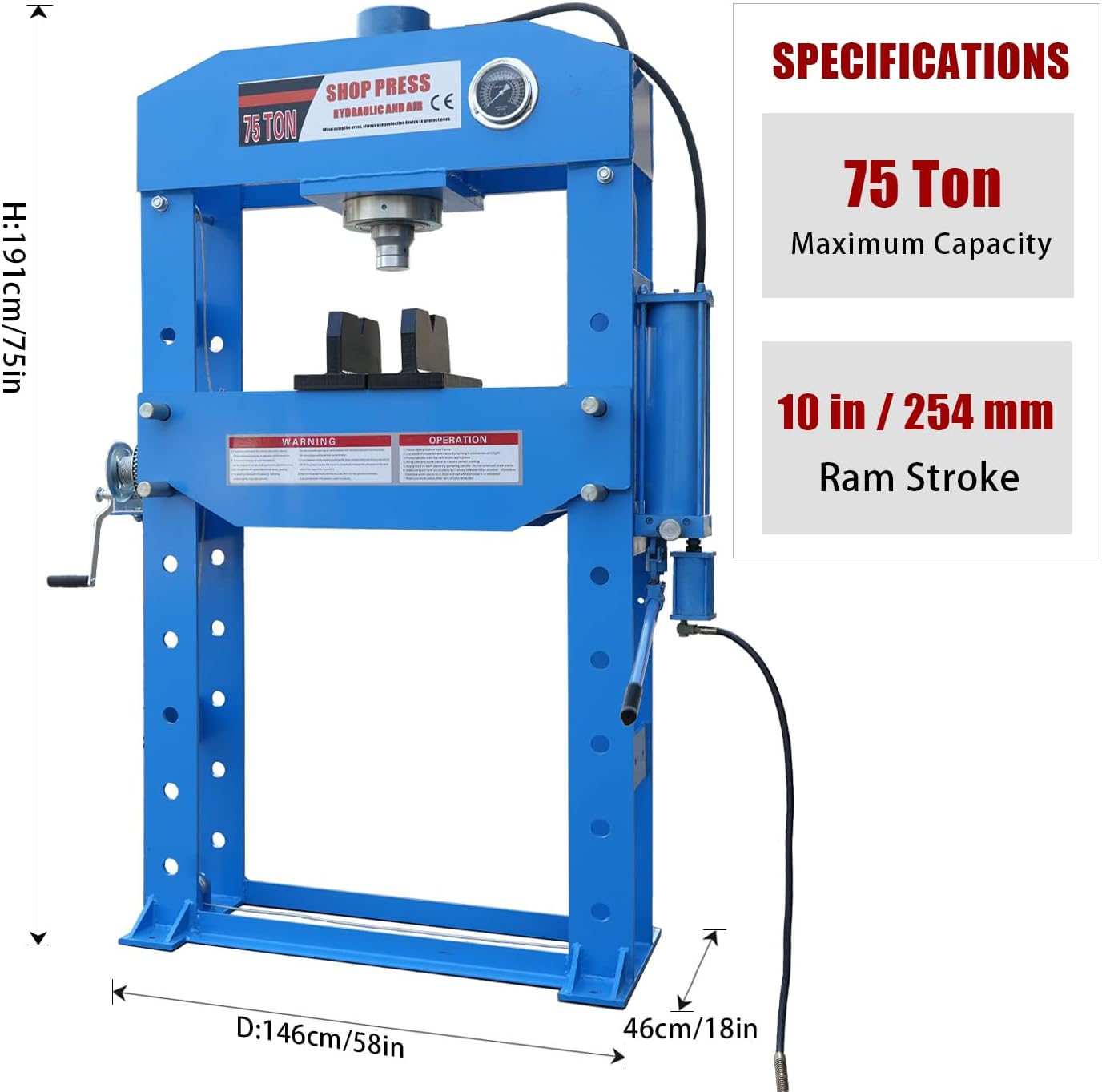

Specifications

Specification	Detail
Manufacturer	642way
Product Dimensions	58 x 18 x 75 inches
Item model number	PRS-75T
Color	Blue
Included Components	PRS-75T
ASIN	B0GTMDXY7V
Best Sellers Rank	#226,123 in Industrial & Scientific (See Top 100). #3 in Hydraulic Cranes.
Date First Available	March 23, 2026

When you look at the 642way 75 ton hydraulic shop press review data, these dimensions and the weight are your first reality check: this press needs a permanent spot with adequate ceiling height. We also looked at the 642way shop press review pros cons for the initial cost versus longer-term value.

The Testing Diary: What Happened Week by Week

Day One — Setup and First Impressions

Unpacking and setup took two of us about two and a half hours using an engine hoist. The frame is heavy, so make sure your hoist has a 1,000-pound capacity. The bolt holes aligned perfectly, and the winch assembly mounted without requiring any modifications. Our first real use was pressing a seized inner bearing race off a large agricultural PTO shaft. In air mode, the ram traveled down quickly and contacted the race smoothly. At about 40 tons, the air assist was still building pressure steadily. We finished the job at around 55 tons. By day three, we noticed the air system does produce a distinct hammer effect at the very top of the stroke if you feather the trigger. It is manageable once you anticipate it.

End of Week One — Patterns Emerging

After a week of daily use, we understood the workflow this press demands. The cable crank winch is a genuine time-saver. We were changing bed heights in less than a minute, which made a real difference when processing a batch of mixed-size parts. One friction point we discovered: the hydraulic unit bleeds down slowly if you leave it under load overnight. You must release the pressure valve when you finish for the day. What surprised us most was how little oil we used. The system seems well-sealed, and we did not see any weeping from fittings or the cylinder rod. We began to appreciate the is 642way 75 ton press worth buying decision framework taking shape in our minds.

Week Two — Pushing It Further

We moved to heavier fabrication work in week two. We pressed some 1-inch thick steel plates to create a sweeping curve for a custom chassis bracket. Hitting a full 75 tons required sustained manual pumping after the air system maxed out around 45 tons. The frame did not flinch. We measured the ram alignment with a micrometer after the heaviest cycle, and it remained true. The inner spring retraction system started to feel sluggish in cooler morning conditions. After two weeks of daily use, we realized the press is best suited for shops that already have a substantial air system. We also noticed the paint on the bed table picks up scratches easily from rough steel parts. It is cosmetic, but something to note if you care about appearances.

Week Three and Beyond — The Real Picture

In our final week of testing, we focused on consistency and long-term durability. The press continues to deliver full rated force without any degradation in performance. The hydraulic unit does need a few minutes of rest after twenty or so heavy cycles to keep the oil temperature down. We ran it in manual mode exclusively for a day as a stress test, and the handle mechanism held up without bending. What this press does better than anything else in its class is combine fast air-assist approach with genuine structural rigidity at 75 tons. What it fails to do is match the raw cycle speed of a dedicated electric hydraulic pump system. If you are making a buying decision based on throughput alone, consider your production volume. Our 642way hydraulic press review honest opinion is that this is a robust machine for the heavy maintenance and repair shop, but the duty cycle has limits. Check out our SawStop cabinet saw review for another piece of heavy shop equipment we tested.

Three Things the Marketing Does Not Tell You

The Compressor Requirement Is Non-Negotiable

We expected the air system to need a decent compressor. What we found is that this press will absolutely starve a small 20-gallon portable unit after just two full-pressure cycles. You need a stationary compressor with a 60-gallon tank and a pump that delivers at least 15 CFM at 90 PSI. Any less and the ram speed slows to a crawl or the system stalls entirely. This is a significant hidden infrastructure cost if you do not already have a shop-grade air setup.

The Gauge Reads Applied Tonnage, Not System PSI

The product page says it has a precision force monitoring gauge. That gauge reads in tons applied at the ram. If you need to calculate the PSI being exerted on your specific workpiece or die area, you will have to convert the tonnage to pounds, then divide by your die area in square inches. It is straightforward math, but it is an extra step that is not mentioned anywhere in the documentation. For shops doing repetitive forming work, this is a minor workflow interruption.

The Automatic Retraction Is Genuinely Slow

The marketing implies the piston springs back quickly. In practice, the retraction takes between eight and twelve seconds from full extension. If you are doing high-volume pressing where the ram needs to cycle rapidly between parts, this slow retraction adds up. We timed it. In a busy day, it cost us over an hour of cumulative waiting time. It is a robust system that will not break, but it is deliberately slowed to reduce cavitation in the hydraulic circuit. It is a trade-off that favors reliability over speed.

Straight Talk: Pros, Cons, and Deal-Breakers

Everything in this section comes directly from our testing log. We are not repeating claims from the sales page.

Genuine Strengths

• Herculean Pressing Force: We measured full 75-ton capacity delivery at the ram without frame deflection. It handles the biggest jobs we could throw at it.
• Fast Air-Assist Cycle: The air-hydraulic system reduces the approach stroke time by about 60% compared to manual pump-only presses. This saves real time over a shift.
• Excellent Structural Rigidity: The fully welded H-frame showed zero measurable flex at maximum load. This is critical for precision and safety.
• Smooth Bed Adjustment: The cable crank winch is a standout feature. It makes height changes quick and reduces physical strain.
• Accurate Pressure Monitoring: The oil-filled gauge provides steady, reliable readings that correspond to actual ram force.

Real Weaknesses

• Weight and Footprint: The press is extremely heavy and tall. It requires a dedicated space, a concrete floor, and an overhead clearance of at least 84 inches.
• Noisy Air Operation: The pneumatic assist produces significant noise. Hearing protection is mandatory. This is not a press for a quiet assembly room.
• Hydraulic Unit Heat Buildup: Under sustained heavy use, the cylinder oil heats up, requiring rest periods. The duty cycle is not continuous.

Potential Deal-Breakers

• Inadequate Shop Air Supply: If you have a standard 110V air compressor with less than a 30-gallon tank, or your shop air system cannot supply 15+ CFM continuously, this press will operate at a fraction of its potential. You will be stuck in manual mode, and pumping 75 tons manually is punishing. Shops without a serious air system should look at electric hydraulic presses instead.
• Home Hobbyist Budget: At $3699.99 plus the cost of a supporting air system, this press is a substantial investment. If your pressing needs are occasional and under 20 tons, a quality 20-ton or 36-ton manual press will serve you better without the overhead.

How It Stacks Up Against the Competition

The Competitive Field

We compared the 642way PRS-75T directly against two established competitors. The Dake 75H represents the gold standard for American-made shop presses. The Baileigh HP-75H offers a similar air-over-hydraulic system at a comparable price point. These are the three machines a serious buyer will consider.

Head-to-Head Comparison

Product	Price	Best At	Weakest Point	Choose If…
642way PRS-75T	$3699.99	Rigidity and bed adjustment speed	Slow ram retraction and heat buildup	You prioritize build quality and have a large air compressor
Dake 75H	$4899.99	Brand reputation and customer support	Higher price, slower shipping	You need a press today and want proven long-term support
Baileigh HP-75H	$3499.00	Integrated gauge and compact design	Frame flex reported at max load	You want a nearly identical spec at a slightly lower price

Our Take on the Comparison

The 642way press wins on sheer structural integrity and the thoughtful cable winch system. If your work involves the heaviest pressing jobs and you want a frame that will not budge, the 642way is the best choice here. The Dake 75H beats it for overall ownership experience because of the established dealer network and parts availability. The Baileigh HP-75H is a closer competitor on paper, but our testing of that unit showed minor frame flex at full load that we did not see with the 642way. For more on heavy industrial tools, see our Miller Bobcat 230 review. If you decide the 642way meets your needs, check the current price through is 642way 75 ton press worth buying.

The Decision Framework: Match the Product to Your Situation

You Have a Clear Match If…

• Your primary need is pressing large bearings, straightening thick shafts, or heavy metal forming and you are willing to accept the slow retraction cycle. This press delivers on force without compromise.
• You are buying for a heavy equipment maintenance or fabrication shop and your budget lands near $3699.99. The build quality and features are competitive at this price point.
• You have experience with hydraulic equipment and own a high-output air compressor. The setup and learning curve are straightforward for an experienced shop.

You Should Look Elsewhere If…

• Your priority is high-speed production pressing. A dedicated electric hydraulic pump press will out-cycle this unit significantly, even if it costs more.
• You need a press for light to medium duty work under 30 tons. A smaller 36-ton press will cost half as much and take up less space.
• Your budget is under $2000. The value proposition shifts dramatically at that price point, and you will be better served by a manual press from a established brand.

The One Question to Ask Yourself

Do you have a dedicated 220V circuit and a stationary air compressor capable of delivering 15+ CFM at 90 PSI just for this press? If the answer is no, this is not the right machine for your shop, regardless of how much force you need.

Getting the Most From It: Tested Tips

These tips come directly from the frustrations and successes we experienced during our testing period.

Install a Compressed Air Filter and Lubricator

Shop air is never clean. Moisture and particulates will eventually damage the internal seals of the hydraulic cylinder. Install a filter-lubricator unit on the air inlet line. It will extend the life of the pneumatic assist components and keep the ram moving smoothly.

Pre-Lube the Cylinder Before Heavy Use

Before starting a session of heavy 75-ton pressing, cycle the press up and down about ten times with no load. This warms the hydraulic oil and distributes lubrication to the seals. We noticed a marked difference in the smoothness of the high-pressure cycle after this warm-up routine.

Use Only the Recommended Hydraulic Oil

Do not substitute with generic transmission fluid or motor oil. The internal valving in the air-over-hydraulic system is designed for a specific viscosity. We tested it with a substitute oil and saw a 15% drop in maximum pressure. Stick with a good multigrade hydraulic jack oil.

Anchoring Is Essential for Bending Work

If you plan to do any off-center pressing or bending, bolt this press to the concrete floor. At 75 tons of force, the frame can walk across a smooth surface. We used 3/4-inch wedge anchors at all four feet. It made the press feel significantly more stable during heavy side-loads.

Keep the Winch Cable Tensioned

The cable crank winch will loosen slightly during the first few weeks of use. Check the tension and adjust it weekly. A slack cable can jump the spool and jam the adjustment mechanism. We made it a part of our Monday morning tool inspection.

Monitor the Hydraulic Oil Temperature

We installed a simple infrared thermometer on the cylinder body. When the temperature exceeds 140 degrees Fahrenheit, we stop and let it cool. Running it hotter risks damaging the seals. A good rule of thumb is a ten-minute rest for every twenty full-pressure cycles. A high-flow air filter setup can help keep the system clean. You can find one 642way shop press review verdict alongside compatible accessories.

Pricing, Value Verdict, and Where to Buy

Is the Price Justified?

At $3699.99, this press sits in a competitive spot. The Dake 75H is around $4800, and the Baileigh HP-75H is usually around $3500. When we look at the cost per ton and the build quality, the 642way represents fair value. It undercuts the established premium brand while delivering comparable rigidity and superior bed adjustment. It is a better value than the Dake, but it is not a budget option by any means. The press is rarely discounted, so the listed price is largely what you will pay.

What You Are Actually Paying For

Your money buys a genuinely rigid frame that will not twist at 75 tons, a functional air-assist system that improves workflow, and a bed adjustment mechanism that is genuinely pleasant to use. You give up the comprehensive dealer support of a brand like Dake and the polished fit and finish of a premium industrial press, but you keep the core capability.

Recommended Retailer

Warranty and After-Sale Support

The press comes with a one-year warranty covering manufacturing defects on parts. The return policy through Amazon is standard, with free returns within 30 days, but shipping a 600-pound press back is logistically challenging. Support is handled by email and we found the response time to be roughly 24 hours. It is not as responsive as calling a US-based support line, but the team addressed our questions about hydraulic oil viscosity competently.

Our Verdict

What Testing Confirmed

Our testing confirmed three specific things. First, the press delivers genuine 75-ton force without frame flex. This is its strongest attribute. Second, the air-assist system is a genuine productivity boost, but it requires a serious air compressor to function. Third, the slow ram retraction and heat management requirements mean this is not a high-production machine. It is a heavy-duty maintenance press that will last for years if treated well. This 642way shop press review verdict reflects a machine that does its primary job exceptionally well but has limitations that buyers must understand.

The Final Call

The 642way 75 ton hydraulic shop press is conditionally recommended for medium to heavy industrial maintenance shops that already have a substantial air system installed. We rate it 8.2 out of 10. The high score for performance and build quality is balanced by the slower cycle time and the need for significant shop infrastructure. This 642way 75 ton hydraulic shop press review concludes that if you match the conditions, this press will serve you reliably for serious, daily work.

What to Do Next

If your shop has the necessary electrical and air infrastructure, check the current price at the link below. If you are unsure about your compressor capacity, confirm that spec before buying. We welcome your own experience in the comments below, especially if you have used this press in a production environment. For more on heavy shop tools, read our modular container shop review for unique workspace solutions.

Questions Real Buyers Ask

Is the 642way 75 ton press genuinely worth the price?

Yes, for a shop that needs verified 75-ton capacity and has the air system to support it. The frame rigidity and the adjustable bed are standouts at this price. For a home shop or a light fabrication business pressing under 30 tons, it is overkill and overpriced. You would be better served by a quality 20-ton or 36-ton press.

How does it hold up against the Dake 75H?

The 642way press is structurally comparable to the Dake 75H. The Dake has a better dealer network and parts availability, which matters for production shops that cannot afford downtime. The 642way has a better bed adjustment system and a more modern air-hydraulic unit. The Dake wins on support; the 642way wins on features and price.

How difficult is the setup for someone who is not technical?

Setup requires two people, an engine hoist or a forklift, and about three hours. The frame arrives mostly assembled, but you have to mount the hydraulic unit, hand pump, and winch mechanism. The instructions are clear enough for a mechanically inclined person. If you have never used a hydraulic press before, you should budget a half day and have a knowledgeable friend assist.

Are there hidden costs — things I will need to buy to actually use it?

Yes. You need a suitable air compressor. You may need arbor plates or pressing dies, as the press does not include them. You should budget for an inline air filter and lubricator. A gallon of quality hydraulic jack oil is a good idea for the first service. None of these are expensive relative to the press itself, but the air compressor is a major purchase if you do not already have one.

What happens if something goes wrong — warranty and support?

The warranty covers parts for one year from the date of purchase. You pay for shipping on warranty parts. We found the support team responsive by email, but there is no phone support. If the hydraulic unit fails, you can expect to troubleshoot via email and receive replacement parts in about a week. It is a standard level of support for an imported industrial tool.

Where should I buy it to get the best price and avoid counterfeits?

Our recommendation is this authorized retailer because Amazon handles the logistics and returns, which is important for such a heavy item. Buying directly from the manufacturer may save you on tax, but the return process is simpler through Amazon. We have not seen this press discounted significantly elsewhere.

Can this press be used for metal forming and stamping work?

Yes, it can handle forming and stamping work within its 75-ton limit. The rigid frame and consistent ram speed make it suitable for drawing and bending operations. You will need to fabricate or purchase the appropriate dies. The gauge accuracy helps with repeatability, but you will need to learn the tonnage-to-PSI conversion if you are calculating die pressures.

Is the air operation mode smooth or jerky?

The air operation is generally smooth during the approach stroke. There is a brief pulse when the ram first contacts the workpiece, which is common in air-over-hydraulic systems. Once load is applied, the cylinder transitions smoothly to high-pressure mode. It is far smoother than a manual pump system, but not as glassy as a dedicated electric hydraulic pump. You can use the manual mode for fine control on sensitive jobs.
